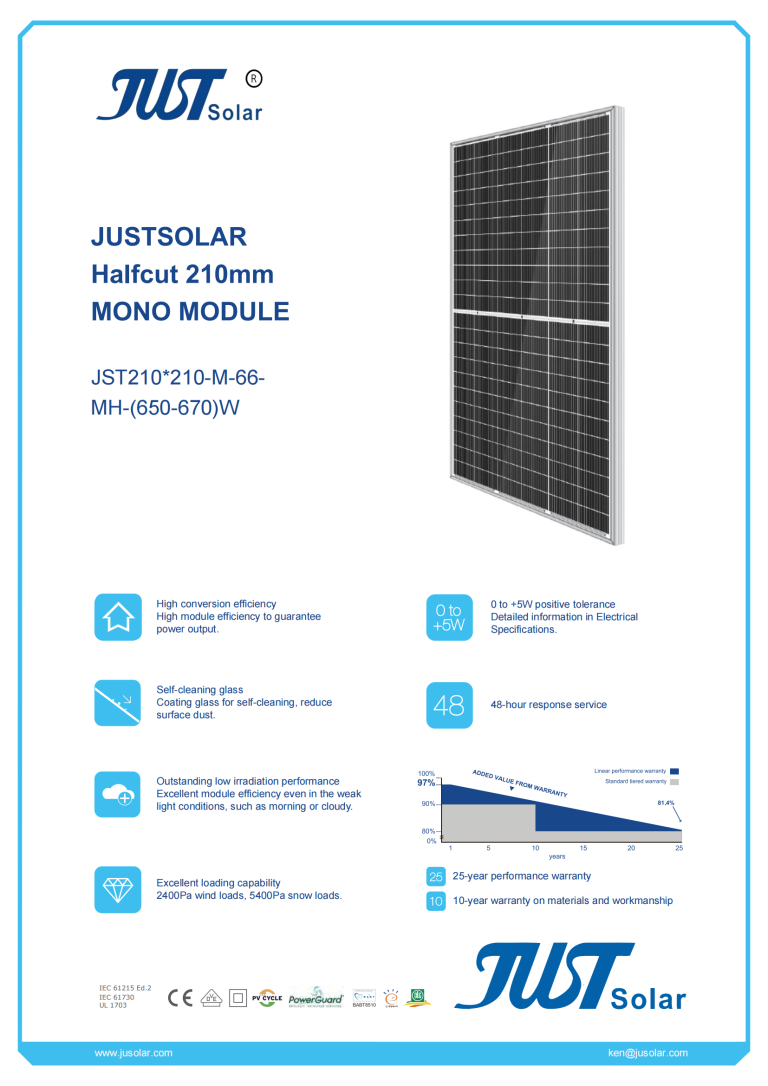

High conversion efficiency
High module efficiency to guarantee
power output.
Self-cleaning glass
Coating glass for self-cleaning, reduce
surface dust.
Outstanding low irradiation performance
Excellent module efficiency even in the weak
light conditions, such as morning or cloudy.
Excellent loading capability
2400Pa wind loads, 5400Pa snow loads.
0 to +5W positive tolerance
Detailed information in Electrical
Specifications.
48-hour response service

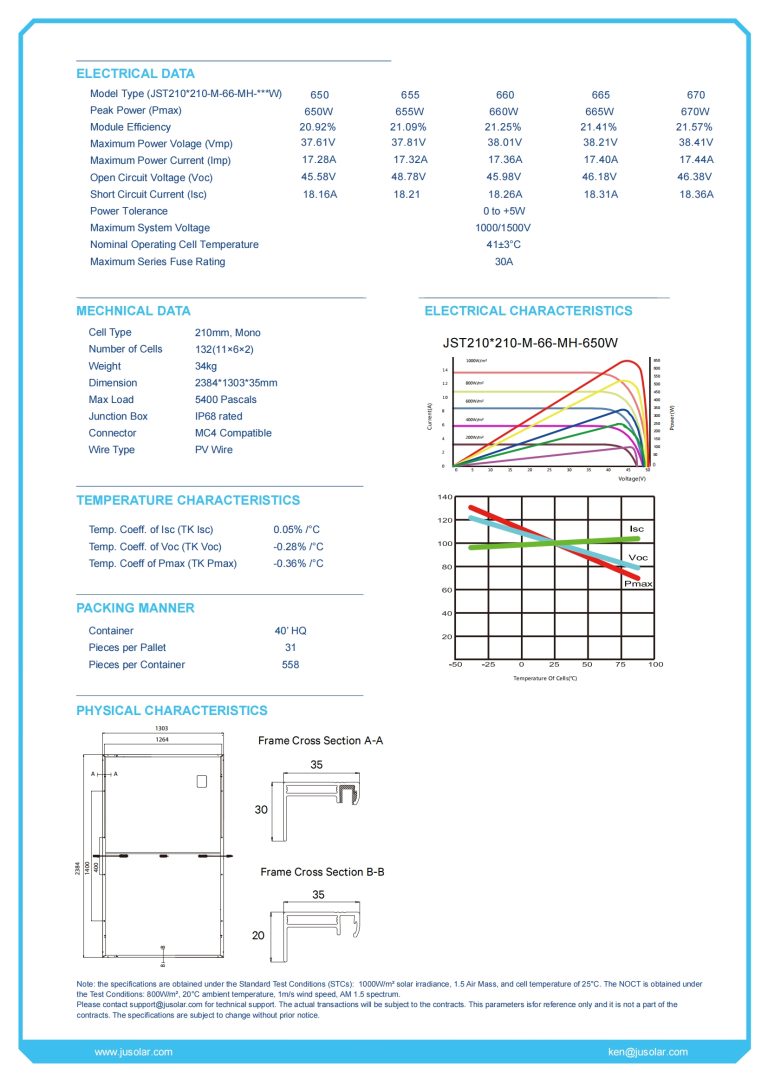

ELECTRICAL DATA
| Model Type JST-G12-M-66-MH- (650-675)W Bifacial |
580 | 585 | 590 | 595 | 600 | |
| Peak Power (Pmax) | 650W | 655W | 660W | 665W | 670W | 675W |
| Module Efficiency | 20.92% | 21.09% | 21.25% | 21.41% | 21.57% | 21.73% |
| Maximum Power Volage (Vmp) | 37.61V | 37.81V | 38.01V | 38.21V | 38.41V | 38.61V |
| Maximum Power Current (Imp) | 17.28A | 17.32A | 17.36A | 17.40A | 17.44A | 17.48A |
| Open Circuit Voltage (Voc) | 45.58V | 48.78V | 45.98V | 46.18V | 46.38V | 46.58V |
| Short Circuit Current (Isc) | 18.16A | 1821.00% | 18.26A | 18.31A | 18.36A | 18.41A |
| Power Tolerance | 0 to +5W | |||||
| Maximum System Voltage | 1500V | |||||
| Nominal Operating Cell Temperature | 41±3°C | |||||
| Maximum Series Fuse Rating | 30A |
MECHNICAL DATA
| Cell Type | 210mm, Mono |
| Number of Cells | 132(11×6×2) |
| Weight | 34kg |
| Dimension | 2384*1303*35mm |
| Max Load | 5400 Pascals |
| Junction Box | IP68 rated |
| Connector | MC4 Compatible |
| Wire Type | PV Wire |
